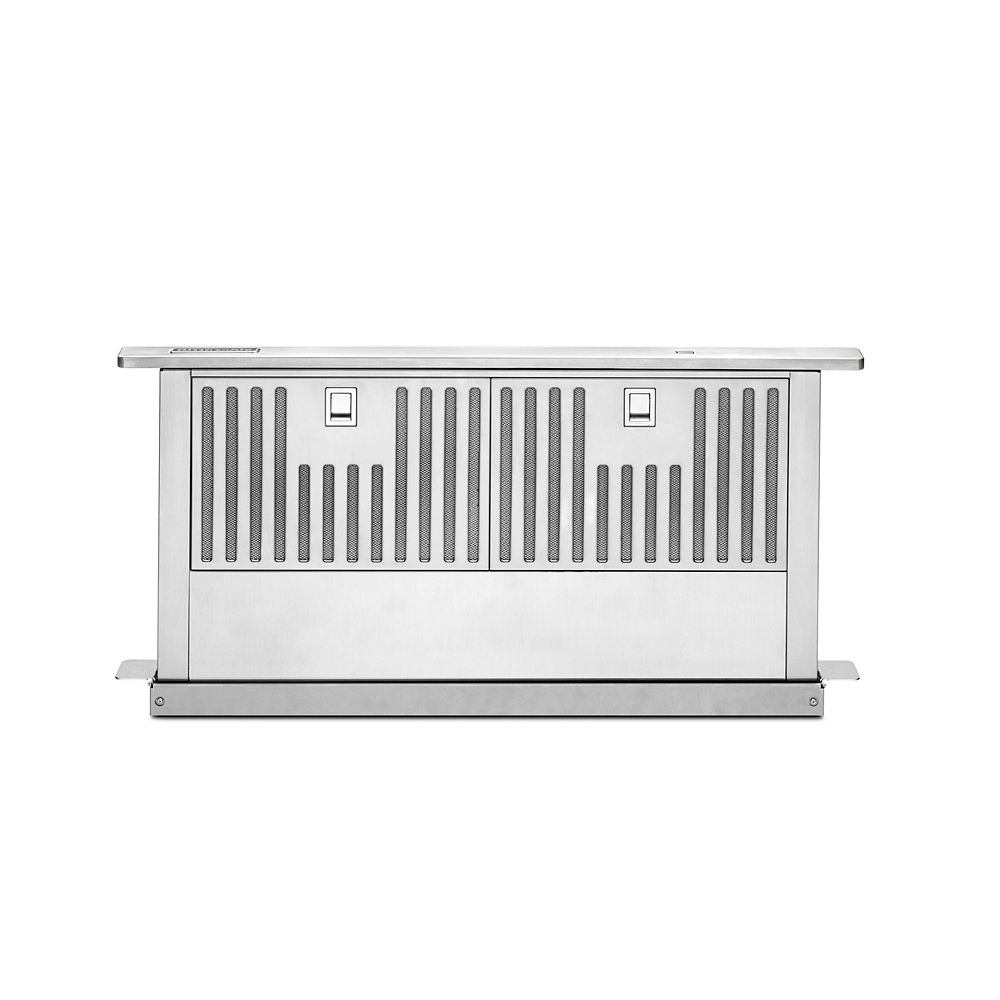

KitchenAid 30-inch Retractable Downdraft System in Stainless Steel

Model # KXD4630YSS|Store SKU # 1000836026

Overview

Model # KXD4630YSS Store SKU # 1000836026

This 30-inch retractable downdraft vent rises 14-inch to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 600 CFM Pro Motor has the power to provide effective venting for most cooktops. The vent system is reversible to help fit in the cabinet space under the vent.

  1. Retractable downdraft design provides a sleek, integrated ventilation solution by remaining flush with the countertop until needed, then rising high above the cooktop surface when turned on
  1. 14-inch rise enhances overall capture above the cooktop for more effective venting, particularly over tall stockpots
  1. 4-speed slide control makes it easy to select and adjust fan speed depending on your ventilation requirements
  1. Reversible motor box lets you create versatile installation options by allowing the motor box to be installed on either side of the downdraft to free up the space beneath the cooking surface
  1. Powerful 600 CFM centrifugal blower to quickly clear kitchen air
  1. 65K BTU threshold compatible with most 36- or 30-inch cooktops, including some commercial-style cooking surfaces
  1. Dishwasher safe grease filters reduces steam, grease, and odor to help avoid contact with ceilings and countertops
  1. Auto on function helps ensure effective ventilation performance by automatically starting the vent at the last used speed when it extends above the cooking surface
  1. Optional interchangeable trim covers change the look of the vent to coordinate with existing cabinetry, countertops, and appliances (not included)

Read more about Delivery & Installation | Download the Appliance Delivery Checklist

Specifications

Dimensions

Assembled Depth (in inches)
33.50
Assembled Height (in inches)
21
Assembled Weight (in lbs)
93
Assembled Width (in inches)
27
Packaged Depth (in inches)
33.5
Packaged Height (in inches)
21
Packaged Weight (In lbs)
93
Packaged Width (in inches)
35

Details

Amperage (amps)
15
Appliance Type
Range Hood
Certified
Yes
Colour Family
Stainless Steel
Country of Origin
MX-Mexico
Fan Speeds
4
Labour
1 Year
Lighting Levels
0
Maximum Air Flow Capacity (CFM)
600 CFM
Mounting Type
Downdraft
Range Hood Features
Removable Filter
Range Hood Width
30 in.
Room Type
Kitchen
The Home Depot Exclusive
No
Vent Installation Type
Ducted

Warranty / Certifications

1 Year Limited Parts & Labor
30-inch Retractable Downdraft System in Stainless SteelKitchenAid 30-inch Retractable Downdraft System in Stainless SteelThis 30-inch retractable downdraft vent rises 14-inch to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 600 CFM Pro Motor has the power to provide effective venting for most cooktops. The vent system is reversible to help fit in the cabinet space under the vent.
KitchenAid
1000836026
CAD16952021-10-19
The Home Depot Canada
30-inch Retractable Downdraft System in Stainless Steel is rated 3.6 out of 5 by 54.
  • y_2021, m_10, d_17, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_54
  • loc_en_CA, sid_1000836026, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_homedepot-canada
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 91ms
  • REVIEWS, PRODUCT
Rated 3 out of 5 by from Eh, not many alternatives available Installed August 2020. Still works ok as of July 2021. The fan doesn’t shut off automatically anymore when you lower it. It was a pain in the butt to install. The fan motor mount makes it difficult to position in a island so mine is mounted farther from the stove than it should be which makes it much less effective.
Date published: 2021-07-31
Rated 5 out of 5 by from Happy with my choice (This review was collected as part of a promotion.) The venting system is quite an improvement to what I had.
Date published: 2021-07-27
Rated 4 out of 5 by from Simple d’utilisation et fonctionnelle [Cet avis a été recueilli dans le cadre d’une promotion.] Nous avons cette hotte depuis 6 mois et elle est silencieuse comparativement à l’autre d’avant. Les filtres sont facile d’entretien.
Date published: 2020-07-22
Rated 2 out of 5 by from Soo massive Instruction manual tells the blower can be on the exterior of the fan While reading twice , i saw that the manual was the same for 3 differents products Mine wasnt officially compatible with sais fonction
Date published: 2020-07-03
Rated 5 out of 5 by from Powerful. Sleek. Elegant. (This review was collected as part of a promotion.) We bought this retractable downdraft to accommodate our kitchen design. We have had this about a month and we could not be more pleased. The operation is both efficient at removing vapour and easy to clean. Sleek design allows this unit to “disappear” with the counter top. The fan will also retract while running and resumed that same fan speed when returning to operation. We have all KitchenAid small appliances and tools and love them also . The phrase “KitchenAid- for the way it’s made” is always on the tip of my tongue when I use this fan !!!!
Date published: 2020-03-21
Rated 2 out of 5 by from Very loud [This review was collected as part of a promotion.] The unit does not set level, see picture. It is very loud and doesn’t pull the exhaust unless the pot/skillet is on the back, nearest burner. Highly overpriced for results.
Date published: 2020-03-16
Rated 5 out of 5 by from Tres pratique et moderne [Cet avis a été recueilli dans le cadre d’une promotion.] Très bon appareil de ventilation. Assez puissant. Sortie exterieur sur le 6" donc ajustement avec conduit existant de la maison. Installation difficile pour un néophyte, prévoir ébéniste et électricien. Cout achat élevé. dispo stainless, noir ou blanc en sus. A nettoyer après chaque utilisation
Date published: 2020-02-11
Rated 5 out of 5 by from Coolness & Function combined (This review was collected as part of a promotion.) Installed this for a kitchen reno and since we got rif of our Over The Range microwave that didnt vent outside, wanted something that actually vented and worked well. The run for this is straight out the side of the house, so any cooking smells and moisture are drawn out faster than anything we have ever used before
Date published: 2020-01-15
  • y_2021, m_10, d_17, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_54
  • loc_en_CA, sid_1000836026, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_homedepot-canada
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 38ms
  • REVIEWS, PRODUCT

We need to replace an old JennAir gas range with downdraft. There are not many downdraft models available. Can this system be used with a slide in gas range?

Asked by: Denise
Hello Denise, Hello, Thank you for reaching out to the Whirlpool central advisor team! We will be more than happy to assist you today. Regarding your question, the KitchenAid's downdraft system can be used with many models, including slide in ranges, but can not be used with JeannAir products. However, we have JennAir's downdraft system and we will more than happy to assist you. You can reach out to us via live chat on our JennAir's webiste: https://www.jennair.ca/ Regards, Sam from the Whirlpool central advisor team.
Answered by: KitchenAidTeam
Date published: 2021-10-15

I need to have the blower mounted on the back of the unit. What is the 4 3/4" area shown in the ...

I need to have the blower mounted on the back of the unit. What is the 4 3/4" area shown in the installation guide? Is this clearance or an actual part that still sticks out 4 3/4" even when blower is mounted on back?
Asked by: MustyRusty
MustyRusty, the area is the motor box. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances!
Answered by: KitchenAidTeam
Date published: 2021-08-16

I need replace an existing (dead) Jenn-Air 30" downdraft vent. What size hole needs to be in the...

I need replace an existing (dead) Jenn-Air 30" downdraft vent. What size hole needs to be in the top of my granite island for this KitchenAid vent?
Asked by: KLB
KLB, please visit https://bit.ly/2RCvuy1 and refer to page 9 for more information.
Answered by: KitchenAidTeam
Date published: 2020-04-15

Can this unit be installed behind a range ?

Asked by: Kerry
Hi Kerry, thank you for your question. This unit can be combined with these ranges : KSIB900ESS or KSGB900ESS . Hope this information is helpful for you. Whirlpool Central.
Answered by: WhirlpoolTeam
Date published: 2019-09-17

Does this come with a blower? Or it’s sold separately?

Does this come with a blower? Or it’s sold separately?
Asked by: Tim
Hi Tim, the KXD4630YSS does come with aPowerful 600 CFM centrifugal blower to quickly clear kitchen air for you. Here is a link to the Installation Instructions for you: https://images.homedepot-static.com/catalog/pdfImages/e7/e7974c9a-e0e0-4594-b0bd-b5ef69457339.pdf
Answered by: KitchenAidTeam
Date published: 2020-12-09

One of the reviews said this product operates at only 9" not the advertised 14. Is this true? H...

One of the reviews said this product operates at only 9" not the advertised 14. Is this true? How much does it raise up when actually running?
Asked by: JR
JR. The appliance rises to 14 inches.
Answered by: KitchenAidTeam
Date published: 2019-02-04

Can this product be plugged into a standard 120 electrical plug? If so what needs to be purchased?

Asked by: MOP
MOP, the Downdraft system requires 120 volt, 60 Hz., AC only, 15-amp, More information on requirements needed for installation can be found in the Use and Care Guide, https://www.homedepot.com/catalog/pdfImages/ca/ca11d041-15ee-4efd-9e75-a817ca816648.pdf.
Answered by: KitchenAidTeam
Date published: 2018-02-15

which dual fuel ranges will work with this

which dual fuel ranges will work with this
Asked by: virginia
Hi virginia, the KXD4630YSS will work with: KFDD500ESS double oven convection range or the KSDB900ESS slide in range with baking drawer. You also may want to consider the KSDG950ESS, which features a built in DownDraft fan system. Thank you for your interest in KitchenAid
Answered by: KitchenAidTeam
Date published: 2017-12-19
