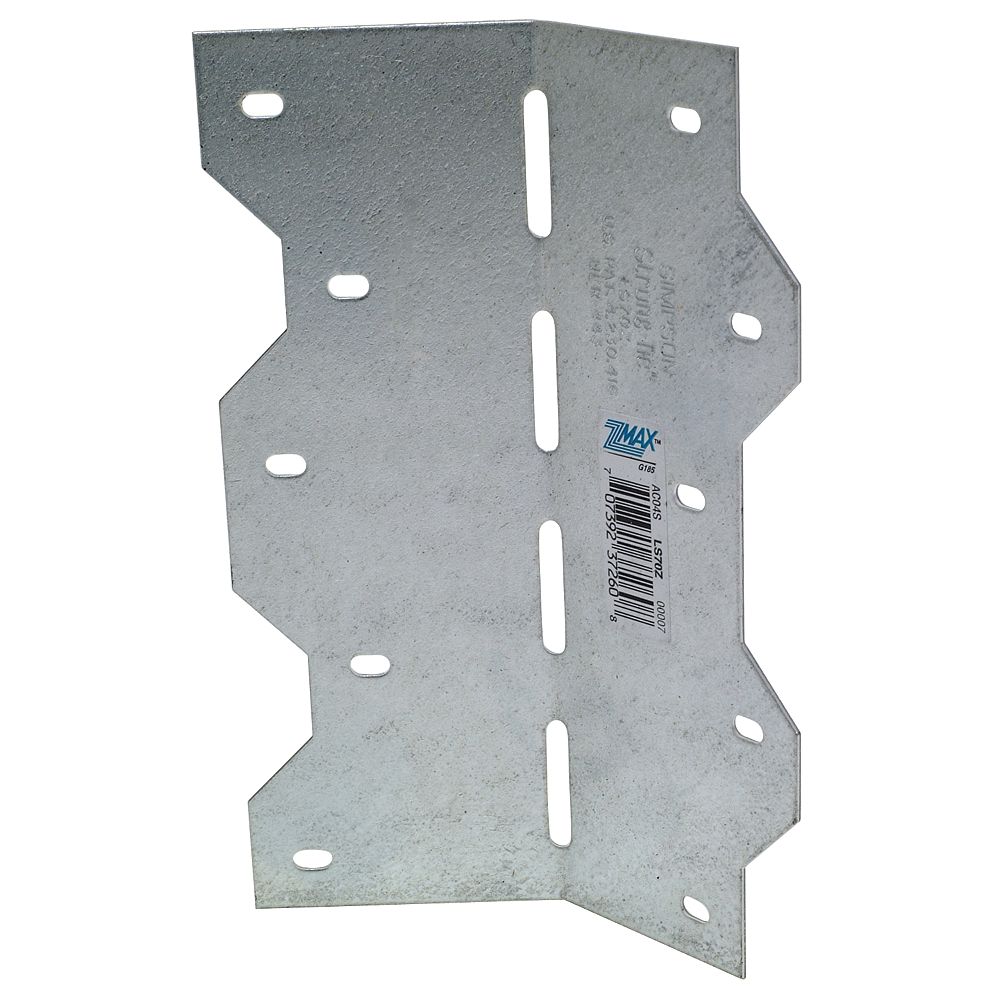

Simpson Strong-Tie LS 6-3/8 inch 18-Gauge ZMAX Galvanized Adjustable L Angle

Model # LS70Z|Store SKU # 1000793055

Overview

Model # LS70Z Store SKU # 1000793055

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our ZMAX zinc-coated connectors, which provide extra resistance against corrosion (look for a "Z" at the end of the model number).

Used to reinforce 90° connections

Staggered fastener pattern reduces the chances of wood splitting

Field-adjustable 0° to 135° (bend one time only)

Made from 18-gauge steel

ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install with 10d common nails or #9 x 1-1/2 inch Strong-Drive® SD screws

Specifications

Dimensions

Assembled Depth (in inches): 1.25
Assembled Height (in inches): 7
Assembled Weight (in lbs): 0.34
Assembled Width (in inches): 3.25
Packaged Depth (in inches): 1.591
Packaged Height (in inches): 6.375
Packaged Weight (In lbs): 0.34
Packaged Width (in inches): 3.841

Details

Colour Family: Silver
Country of Origin: US-United States
Field Adjustable: Yes
Hanger Flange Type: Face Mount
Length (in.): 6.38
Material: Steel
Material Application: Wood

Warranty / Certifications

Limited Warranty
